BHT05 - Adjustable Drying Rack

BHT05 - Adjustable Drying Rack

Base unit is supplied with 2 upright sections and 1000 mm adjusting beams, different length beams can be selected from the drop down box and additional uprights can also be added as per your requirements

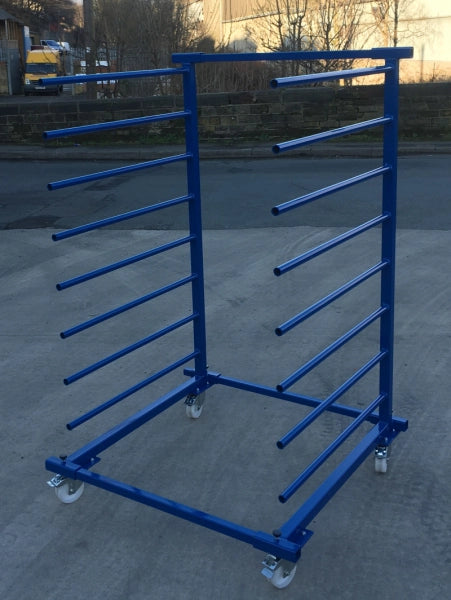

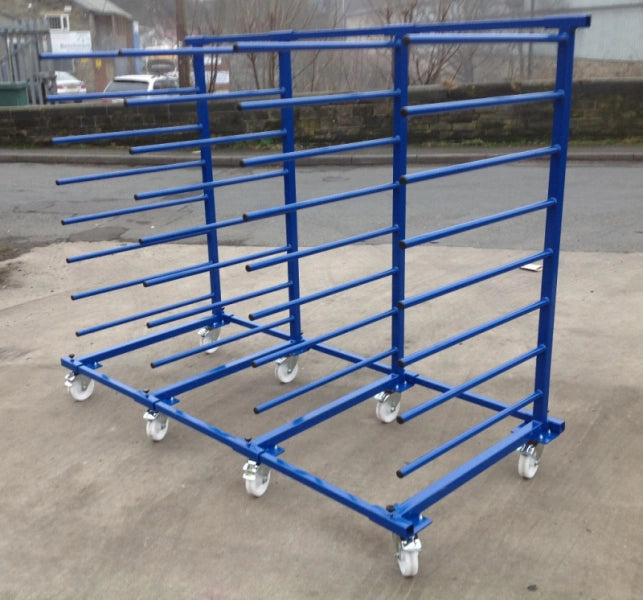

Product shown in photos is with 2000 mm beams and 2 additional uprights

The uprights can be moved closer together by loosening the 3 locking nuts and sliding along the connecting beams.  This also means that they can be dismantled for storage when not in use

Specification

Height:  1575 mm

Depth:  950 mm

Connecting beam lengths:  1000, 1500, 2000 mm

Distance between levels:  150 mm

Length of support arms:  800 mm

Wheels:  On each upright there are 2 swivel braked 100 mm nylon castors

SWL:  25 Kg per level over 2 supports (increase by 15 kg for every extra support)

Powder Coated finish in RAL 5010 Blue
